Split Level Stair Framing


Below are links to pictures for one of the stairways I installed in a room addition that had a split landing. If you're looking for advanced framing techniques, for stair builders, you're in the right place.

Stairway Stringer Layout Tools Stair Gauge on Framing Square - Riser Stair Gauge on Framing Square - Tread Laying Out Stinger With Framing Square

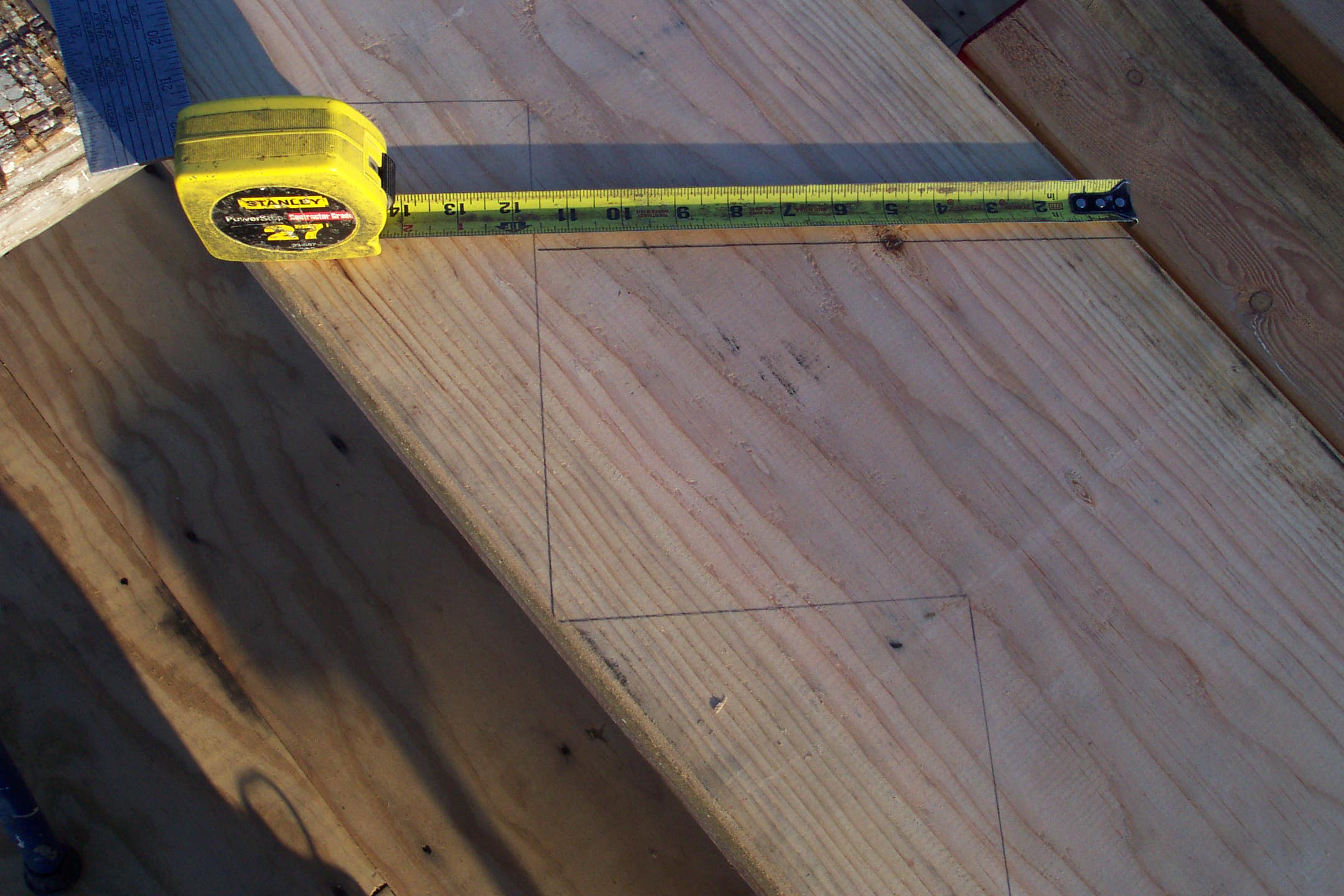

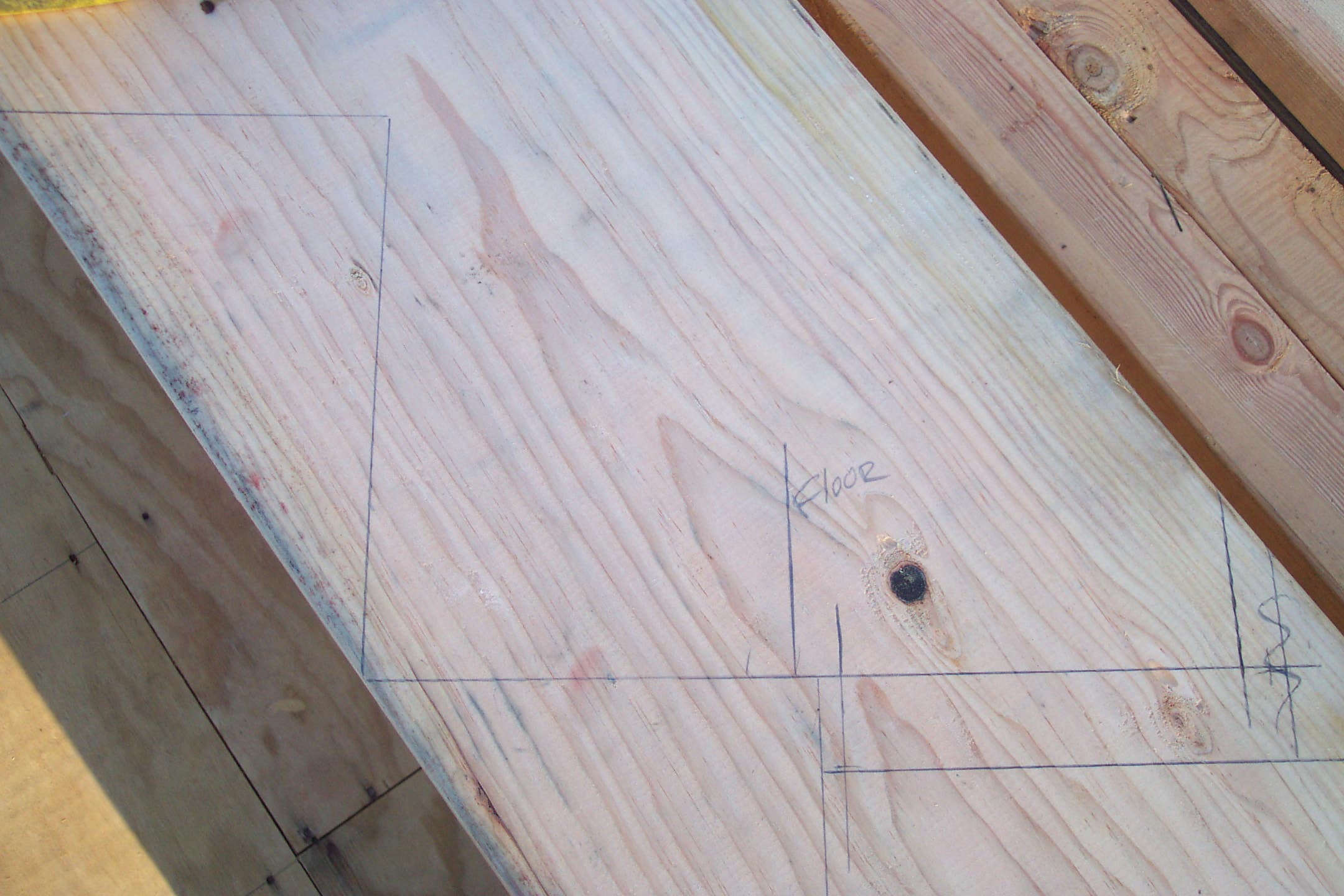

Measuring Floor Joist for Stair Stringer Layout Stair Headout Connection - Stair Stringer Layout Stair Landing Stringer Layout Split Landing Stair Stringer Layout
Deducting for Stair Tread and Treated Lumber Bottom Stringer Layout Stair Ledger Layout Tread and Riser Marks on Stair Stringer
Upper Stair Stinger Completed Layout Cut Stair Stringer - Floor Joist Connection Cut Stair Stringers on Sawhorse Table Bottom of Stair Stringer after Cutting

Next Split Level Stair Framing



Stair Stringer Ledger

Stinger Nailed To Landing Ledger

Stairway Landing Beam In Wall

Split Level Landing Framing

Step in Stair Landing Framing

Stair Framing In Process

Side Wall Stair Stringer

Stair Landing and Stringers in Place

Upper Landing Stair Stinger Connection

Upper Stringers Nailed in Place

Stingers Connected to Landing Beam

Stringer and Floor Headout Connection

Upper Stair Landing Framing and Stringers

Stinger Extension To Be Cut Latter

Angled View of Lower Stairway About to Nail Risers

Stairway Framing With Plywood Risers

Plywood Risers Ready to Nail to Stair Stringers

Nailed Risers on Lower Stairway

Split Stair Landing Before Risers Are Nailed

Using Construction Adhesive for Stair Treads

Construction Adhesive on Stringers

Bottom of Curved Stair Tread and Riser

Bottom of Round Tread

Fastening Plywood Nailers to Create Round Riser

Finished Rounded Stair Tread and Riser

Finished Bottom Stairway - Split Landing Staircase

Floor Framing Around Stairwell

Second Floor Stairwell Cut Out

Upper Level View of Completed Stairs

Split Landing With Plywood Sheathing

Second Floor Sheathing Overhang

Second Floor View of Stairway

Top View of Lower Finished Stair Framing

Stairway and Upper Floor Wall Layout

Stairwell and Second Floor Framing Plates

Framed Shelf in Stair Landing
